Honeycomb structures from Innovent are available in Stainless Steel, Titanium or other high temperature alloys

Honeycomb Structures

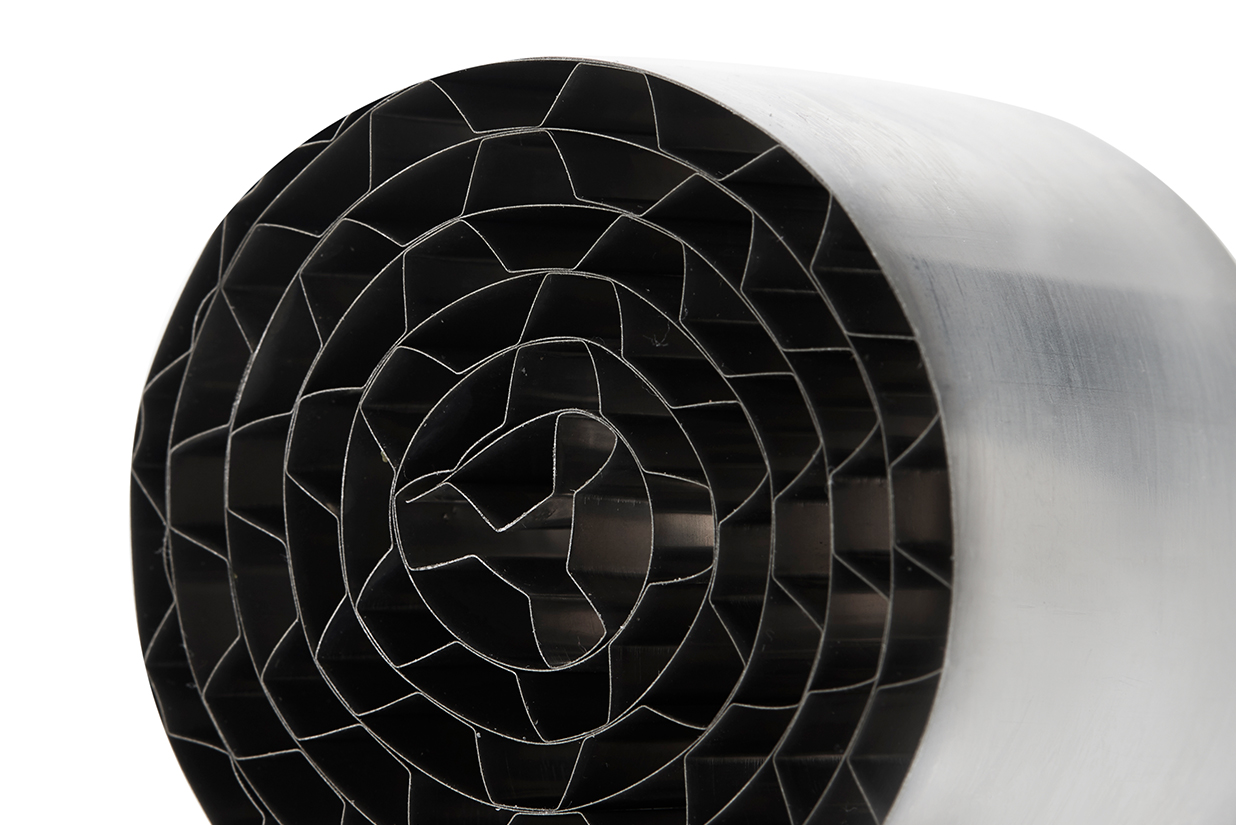

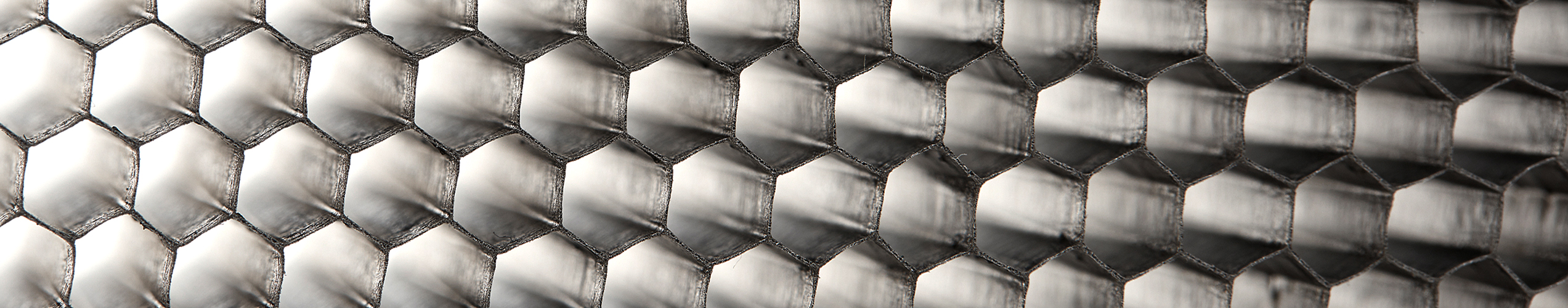

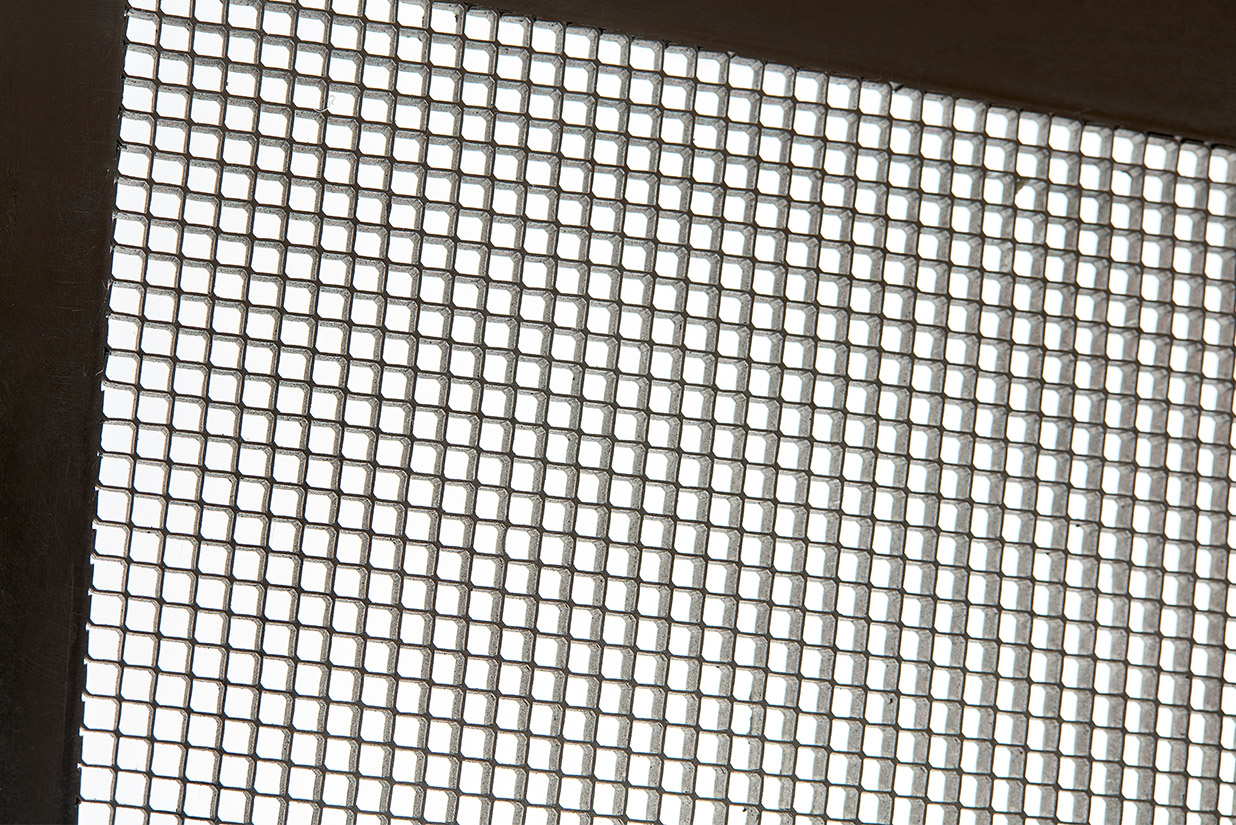

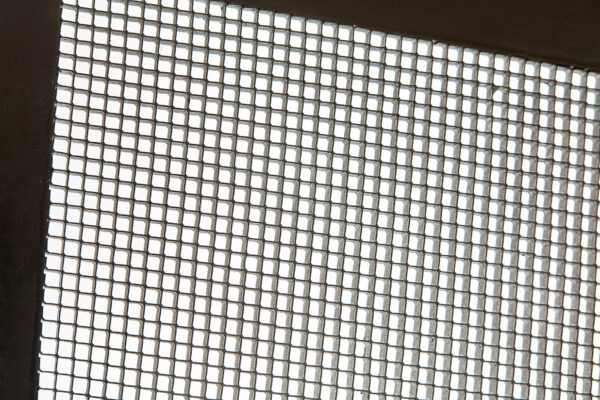

They can be constructed by either welding or brazing and can be configured with Hexagonal, Square, Spiral Wrap or Flexible Elcomb™ cells.

Applications include:

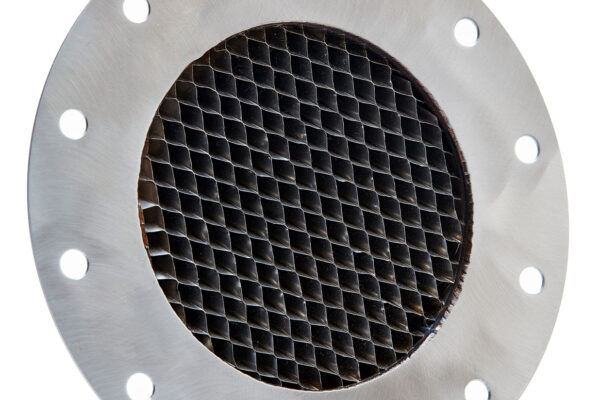

  • Flow Straighteners: Remove disturbances and create laminar flow while achieving nearly-fully developed velocity profiles.
  • Chemical Processing: Heat conduction.
  • Flame Arrestors: Restricts the transmission of flame from the unprotected side to the protected side of device or tank.
  • Particle Filtering: Traps solid particulates present in fluid streams.
  • EMI/EMF Shielding: Blocks Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) of various wavelengths.
  • Acoustic Liners: Used to damp engine noise on aircraft engines employing the Helmholtz resonance principle.
  • Catalytic Substrates: High temperature substrate for catalytic converters.
  • Light Collimators: Used to create parallel light rays to reduce divergence.
  • Energy Absorption: Used to absorb or dissipate energy by compressive deformation.
  • Waterjet Support Bed: Used in the cutting of food products such as pastry, fruits and vegetables.
